2x ePiano

Qué es 2x ePiano ? /What is the e2x ePiano?

Es un sistema de dos módulos o interfaces construídos completamente en madera, que se combinan con 4 micrófonos de condesador electret cada uno (8 en total) y opcionalmente 2 ebow, también cada uno (4 en total). Los módulos se atornillan a las distintas partes del piano (normalmente encima del teclado y en el cordal) con un sistema que no lo daña. Esto permite actuar hasta un máximo de 2 intérpretes (uno en el teclado y otro en las cuerdas).Cada interface dispara de modo independiente el patch de sonido, que se halla diseñado en Max Cycling.Se conecta vía USB al Mac o PC. El instrumento es cuadrafónico, por lo que precisa de 4 vías para que funcione correctamente (se aconseja una amplificación 4+1) Puede ser utilizado simultáneamente por un máximo de 2 intérpretes, a lo que se añade un sistema de presets pregrabados que simultanéan entre ambos. La gama de sonidos que se puede obtener es enorme, siendo el propio intérprete quien interactúa con la electrónica, sin necesidad de terceros. El hecho de que el sonido sea el mismo del piano hace que el intérprete pueda reconocer rápidamente los mecanismos de la electrónica, puesto que se comporta como una ampliación de su técnica. El sistema emplea Arduino como base del hardware de conexión al ordenador o computadora, a la que se conecta directamente sin necesidad de drivers adicionales. 2x ePiano It´s a sound system of two modules or interfaces built entirely of wood. They combine 4 electret condenser microphones for each one (8 in total) and optionally 2 ebow, also each one (4 in total). The modules are placed to the different parts of the piano (usually above the keyboard and in the strings zone) with a system that does not damage it. This allows it to be handled by a maximum of 2 players (one on the keyboard and one on the strings) . Each interface works independently to the sound patch, which is designed with Max Cycling. It connects via USB to Mac or PC. The instrument is quadraphonic, so it requires a 4-way to work properly (4 + 1 amplification is recommended) It can be played simultaneously by a maximum of 2 players, and also a system of prerecorded presets can be combined between them. The range of sounds that can be obtained is enormous, and again it is the player himself who interacts with electronics, without the need of third parties. The fact that the sound is the same as the piano, it helps the performer quickly recognize the mechanisms of the electronics, as it can be identified as an extension of their technique. The system uses Arduino as the basis of the computer connection hardware, and it connects directly without additional drivers.

Características / Features

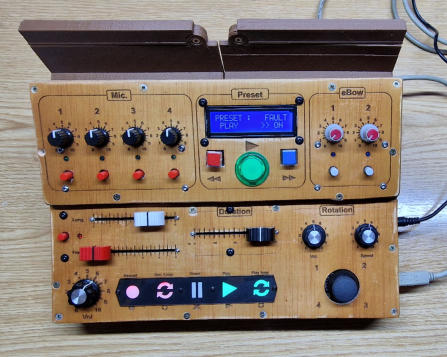

2 Módulos interconectados e independientes / independent and connected modules 4 Micrófonos de condensador electret para cada módulo / Electret condenser mic. (8 total) Comandos intependientes para cada módulo / Independent module commands 1.- Independent volume for every condenser mic. electret 2.- Electret on/off 3.- Volume of modified sound potentiometer 4.- Select time Record slider 5.- Capactitive Record button 6.- Capactitive Record Loop button 7.- Capactitive Play button 8.- Capactitive Play Loop button 9.- Reset button button 10.- Change wave length & inverse slider 11.-Change Frequency slider 12.- Negative sideband button 13.- Modified sound rotation potentiometer (Left & Right) 14.- Volume rotation potentiometer 15.- Joystick for sound rotation 16- eBow voltage (2 ebow) 17.- eBow on/off 18.- Play common 19.- Presets (forward & backward) 20.- Presets LCD 21.- Table Stand Módulo principal / Main Module Rear module Low side made of rubber for to place on the piano Electret condenser mic & position piano system (built in rubber) Building On the Piano
Electronics
2x ePiano

Construction, design, and Arduino codes free (coming soon)

Agustín Charles

´Qué necesitas/ What you need:

Live Electronics & spazialitation
