eJoystick
MIDI-OSC Wifi
Agustín Charles
Qué es eJoystick? /What is the eJoystick?
Es
un
joystick-interface
Midi
vía
Wifi,
que
emplea
el
sistema
OSC
(OpenSound
Control)
para
la
comunicación con el ordenador y los interfaces conectados con aquél.
Está
diseñado
para
interactuar
con
Max
Cycling
y
ser
usado
para
la
modificación
de
la
voz
o
instrumento
en
directo.
Permite
grabar
y
reproducir
modificando
la
longitud
de
onda
y
la
frecuencia,
ya
sea
con
potenciómetro
o
joystick,
y
rotar
el
sonido
con
uno
de
los
joysticks.
Las
funcioneds
de
todos
los
botones,
potenciómetros
y
yoisticks
pueden
ser
modificados
a
elección.
Esto
permite
obtener
gran
versatilidad
en
sus
funciones,
pudiendo
adaptar
los
movimientos
a los cambios del sonido con un interface que no posee cables.
Se
conecta
a
la
red
local
mediante
el
módulo
ESP32
Lolin32
que
lleva
incorporado.
Únicamente
hay
que
modificar
en
el
código
de
programación
el
nombre
de
la
red,
password
e ip del ordenador fuente. Funciona con Mac y PC. Encender y funcionar directamente.
Se halla construído en madera combinado con plástico impreso en 3D.
Incorpora
una
batería
de
2600mah
que
permite
más
de
10
horas
de
funcionamiento
continuado.
Se trata de un módulo de bajo coste (menos de 25€) con grandes prestaciones.
Próximamente añadiremos planos, códigos y fotografías de montaje.
It´s
a
Midi
joystick-interface
via
Wifi,
which
uses
the
OSC
(OpenSound
Control)
system
for
communication with the computer and the interfaces connected to it.
It
is
too
designed
to
interact
with
Max
Cycling
and
be
used
for
live
voices
or
instrument
modification.
They
allows
recording
and
playback
for
modify
the
wavelength
and
frequency,
either
with
a
potentiometer
or
joystick.
They
can
rotating
the
sound
with
one
of
the
joysticks.
The functions of all buttons, potentiometers and yoisticks can be modified as desired.
With
the
MIDI-OSC
joystick
you
can
obtain
great
versatility
and
a
lot
of
functions,
and
you
can
adapt movements to sound changes with an interface without cables.
They
connects
to
the
local
network
through
the
ESP32
Lolin32
module
that
is
incorporated.
You
only
need
to
modify
in
the
code
the
network
name,
password
and
ip
of
the
source
computer. Works with Mac and PC and they are plug&play.
The construccion its made of wood combined with 3D printed plastic.
With a 2600mah battery they can allows more than 10 hours of continuous operation.
This is a low cost module (less than € 25) with great features.
Coming soon the plans, codes and assembly photographs.
Características / Features
Cada módulo es independientes y se pueden conectar en númer indefinido / Each module are
independent and can be connected indefinitely
Comandos intependientes para cada módulo / Independent module commands

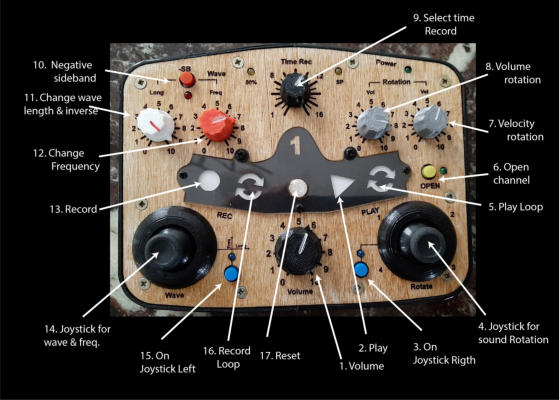

1.- Volume of modified sound potentiometer
2.- Capactitive Play button
3.- On/Off joystick Rigth
4.- Joystick for sound rotation
5.- Capactitive Play Loop button
6.- Open channel
7.- Velocity rotation potentiometer
8.- Volume rotation potentiometer
9.- Select Time Record
10.- Negative sideband button
11.- Change wave length & inverse pot
12.--Change Frequency pot
13.- Capactitive Record button
Modified sound rotation potentiometer (Left & Right)
14.- Joystick for wave & freq.
15.- On/Off joystick Left
16- Capactitive Record Loop button
17.- Reset button

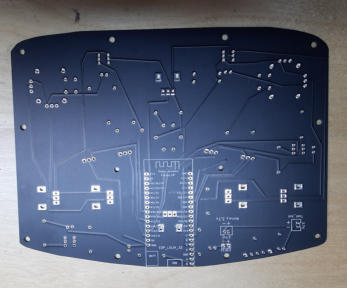

Módulo principal / Main Module

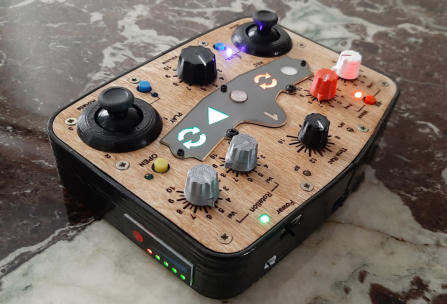

Vistas Joystick / Joystick views
Construction, design, and Arduino codes free (coming soon)
