New

instrume

nts

The construction of instruments ad-hoc is now a reality. The github community, 3D printing, the DIY universe already make possible the dream of every creator, who, beyond writing the musical composition, anyone can create for himself the instrument for reproduce his own music, with unimaginable technical resources and development characteristics, that had evolverd enormously in the last decade. In this place, different instruments are displayed, providing all the means for their construction: design, software, hardware, programming codes, etc., so that each creator can customize it according to own work. Thi is sharing a space for knowledge that must be the seed of the art of the future.

4x ePad-Wood

Instrument made entirely of wood, combining a frame and a structure that contains 4 wooden tom toms (with or without snares) and 4 güeros. It contains 4 spaces in which each player can operate these instruments, together with an interface that triggers a sound patch designed with Max Cycling. It connects to a computer (Mac & PC) via USB (the instrument is quadraphonic, so it requires a 4-way to work properly (4 + 1 amplification is recommended) It can be played simultaneously by a maximum of 4 players. The range of sounds that you can obtain is enormous, as the player interacts directly with the electronics, without the need of a third party.

2x ePiano

Sound system of two modules or interfaces built entirely of wood. They combine 4 electret condenser microphones for each one (8 in total) and optionally 2 ebow, also each one (4 in total). The modules are placed to the different parts of the piano (usually above the keyboard and in the strings zone) with a system that does not damage it. This allows it to be handled by a maximum of 2 players (one on the keyboard and one on the strings)

eVideo React

Interface to modify live video.You can combine 3 screens and 3 simultaneous cameras, in addition to prerecorded videos. The reaction capacity will depend of the computer and the external card used. The module allows you to modify the video source in a versatile and agile way, and it can send different formats to each of the screens. It also incorporates 3D conversion from image and 3D reaction system for the movement from the incoming sound signal. This interface uses Arduino as the basis of the computer connection hardware, to which it connects directly without the need for additional drivers.

eJoystick MIDI-OSC Wifi

for voice & instrument

interaction

It is made for a joystick set that is handled by the same interpreter, allowing to play and modify wave amplification, frequency, and side band, controlling too the movement of the sound at the space. They can be used in an indefinite number of interfaces, depending only of the computer memory. This system is based on the Arduino Wifi technology, so it is an autonomous interface that must be synchronized to the router for communicate to computer via OSC-MIDI system.

eGyro MIDI-OSC Wifi

with gyroscope for voice

& instrument

It is a miniaturized system that can be placed on any part of the body, although preferably on the wrist or upper part of the hand. They can be used on an indefinite number of interfaces. It consists on a gyroscope for regulate X and Y movement,s along with a potentiometer that regulates the sensitivity. Add too two capacitive buttons for ad-hoc, according to the software that will be used. This system is based on the Arduino Wifi technology, so it is an autonomous interface that must be synchronized to the router for communicate to computer via OSC-MIDI system.

ePedal USB-Wifi

It is a pedal-interface to trigger the preset system designed for an app software from Max Cycling. It uses hardware based on Arduino USB to communicate with Mac or PC (no additional drivers required). Exists two versions: one for USB plug & play , and other Wireless (Wifi) with communication OSC.

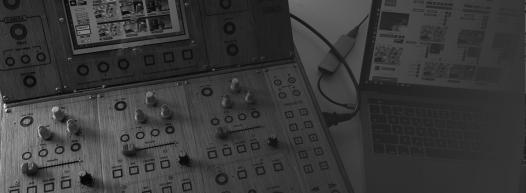

eInterface-Mixer

for 12 independent

quadraphonic channels

con USB plug & play

The connection interface with mixing console features it is a 4-phase sound control system for any channel, that provides a total of 4 pre-recorded channels and another 8 for live. It also have a preset system (64 in total). They have too a joystick system for any channel for live interaction. It uses arduino technology and can be connected to Windows and Mac systems via USB plug & play. It uses a system of capacitive buttons, and it can be built in wood, methacrylate, or any other material. Adds a 13-inch full HD screen, which must be connected to the computer via HDMI. This serves as a displaced monitor to facilitate interactive-live work. (UNDER CONSTRUCTION)

eM-Electret condenser

for 2/4 mic and power

supply

It is a small connection module that allows to connect up to 4 electret microphones, converting the signal into only 2 balanced outputs. It needs to be powered by 12v. Normally it is used together with the presets pedal or any audio system, and the mics can be installed both on the piano, stringed instruments, wind instruments, etc. (UNDER CONSTRUCTION)
